TSR靜音離心風機箱

產品分類:小風量離心風機

點擊次數:1077 次

上架時間:2021-12-15 17:19

全國服務熱線:020-84913508 / 020-84918260

我要詢價

詳細介紹

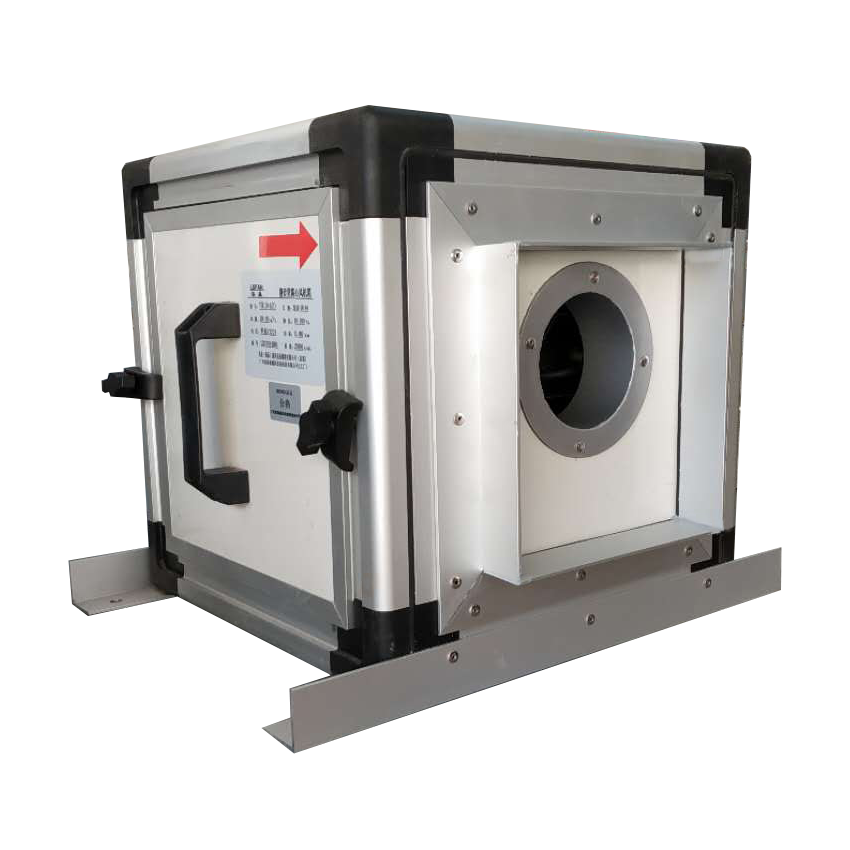

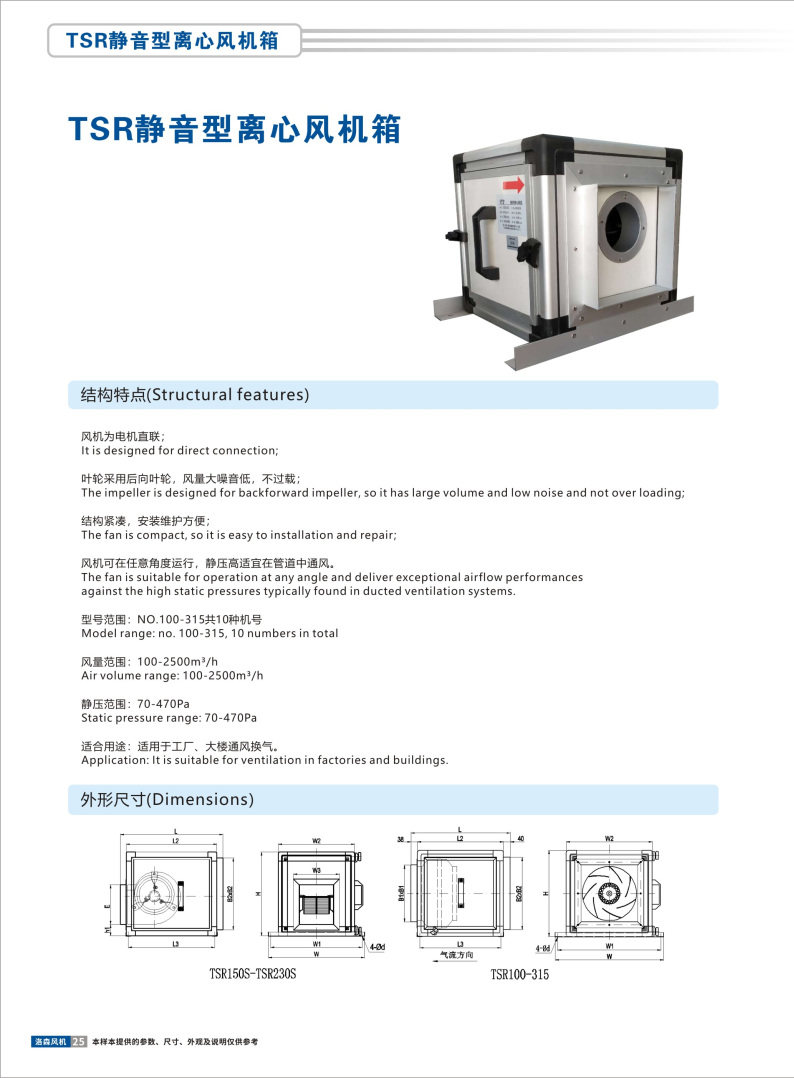

TSR靜音離心風機箱


結構特點:

Structural features:


風機為電機直聯;

It is designed for direct connection;


葉輪采用后向葉輪,風量大噪音低,不過載;

The impeller is designed for backforward impeller, so it has large volume and low noise and not over loading;


結構緊湊,安裝維護方便;

The fan is compact, so it is easy to installation and repair;


風機可在任意角度運行,靜壓高適宜在管道中通風。

The fan is suitable for operation at any angle and deliver exceptional airflow performances

against the high static pressures typically found in ducted ventilation systems.


型號范圍:NO.100-315共10種機號

Model range: no. 100-315, 10 numbers in total


風量范圍:100-2500m3/h

Air volume range: 100-2500m3/h


靜壓范圍:70-470Pa

Static pressure range: 70-470Pa


適合用途:適用于工廠、大樓通風換氣。

Application: It is suitable for ventilation in factories and buildings.
