CR-28高壓離心風機

產品分類:高壓離心風機

點擊次數:964 次

上架時間:2021-12-16 11:03

全國服務熱線:020-84913508 / 020-84918260

我要詢價

詳細介紹

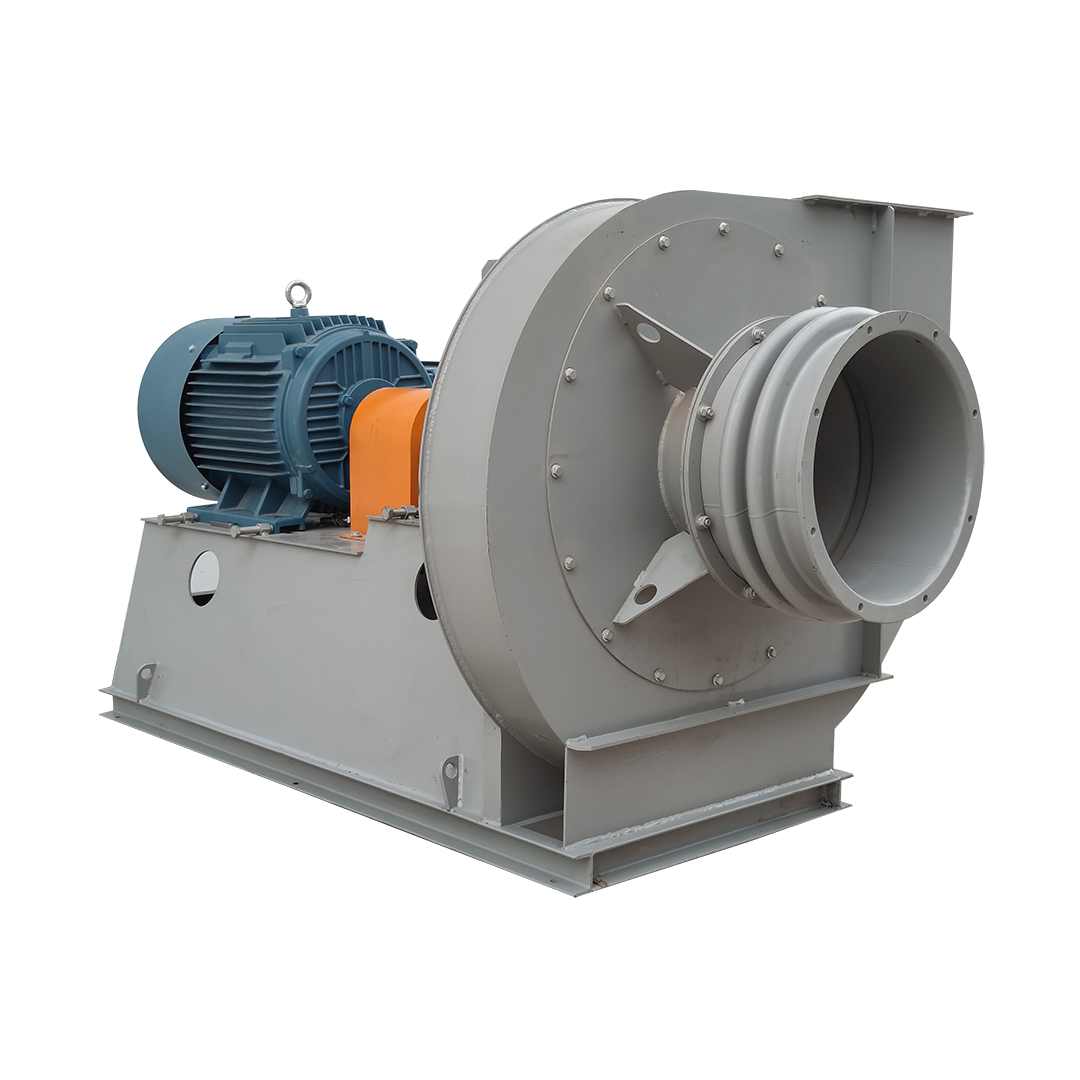

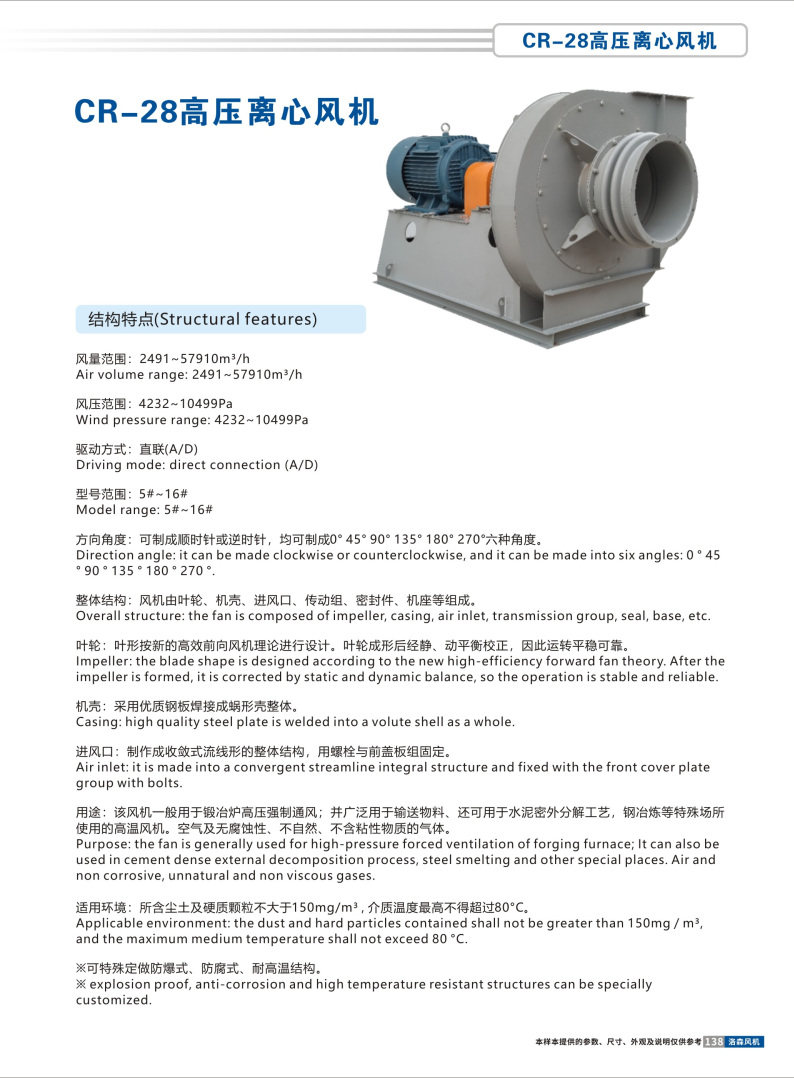

CR-28高壓離心風機


風量范圍: 2491~57910m3/h

Air volume range: 2491~57910m3/h


風壓范圍: 4232~10499Pa

Wind pressure range: 4232~10499Pa


驅動方式:直聯(A/D)

Driving mode: direct connection (A/D)


型號范圍:5#~16#

Model range: 5#~16#


方向角度:可制成順時針或逆時針,均可制成0° 45° 90° 135° 180° 270°六種角度。

Direction angle: it can be made clockwise or counterclockwise, and it can be made into six angles: 0 ° 45 ° 90 ° 135 ° 180 ° 270 °.


整體結構:風機由葉輪、機殼、進風口、傳動組、密封件、機座等組成。

Overall structure: the fan is composed of impeller, casing, air inlet, transmission group, seal, base, etc.


葉輪:葉形按新的高效前向風機理論進行設計。葉輪成形后經靜、動平衡校正,因此運轉平穩可靠。

Impeller: the blade shape is designed according to the new high-efficiency forward fan theory. After the impeller is formed, it is corrected by static and dynamic balance, so the operation is stable and reliable.


機殼:采用優質鋼板焊接成蝸形殼整體。

Casing: high quality steel plate is welded into a volute shell as a whole.


進風口:制作成收斂式流線形的整體結構,用螺栓與前蓋板組固定。

Air inlet: it is made into a convergent streamline integral structure and fixed with the front cover plate group with bolts.


用途:該風機一般用于鍛冶爐高壓強制通風;并廣泛用于輸送物料、還可用于水泥密外分解工藝,鋼冶煉等特殊場所使用的高溫風機??諝饧盁o腐蝕性、不自然、不含粘性物質的氣體。

Purpose: the fan is generally used for high-pressure forced ventilation of forging furnace; It can also be used in cement dense external decomposition process, steel smelting and other special places. Air and non corrosive, unnatural and non viscous gases.


適用環境:所含塵土及硬質顆粒不大于150mg/m3,介質溫度最高不得超過80°C。

Applicable environment: the dust and hard particles contained shall not be greater than 150mg / m3, and the maximum medium temperature shall not exceed 80 ° C.


※可特殊定做防爆式、防腐式、耐高溫結構。

※ explosion proof, anti-corrosion and high temperature resistant structures can be specially customized.
