SDZ柜式離心風機 (英制型)

產品分類:柜式離心風機

點擊次數:841 次

上架時間:2021-12-16 14:21

全國服務熱線:020-84913508 / 020-84918260

我要詢價

詳細介紹

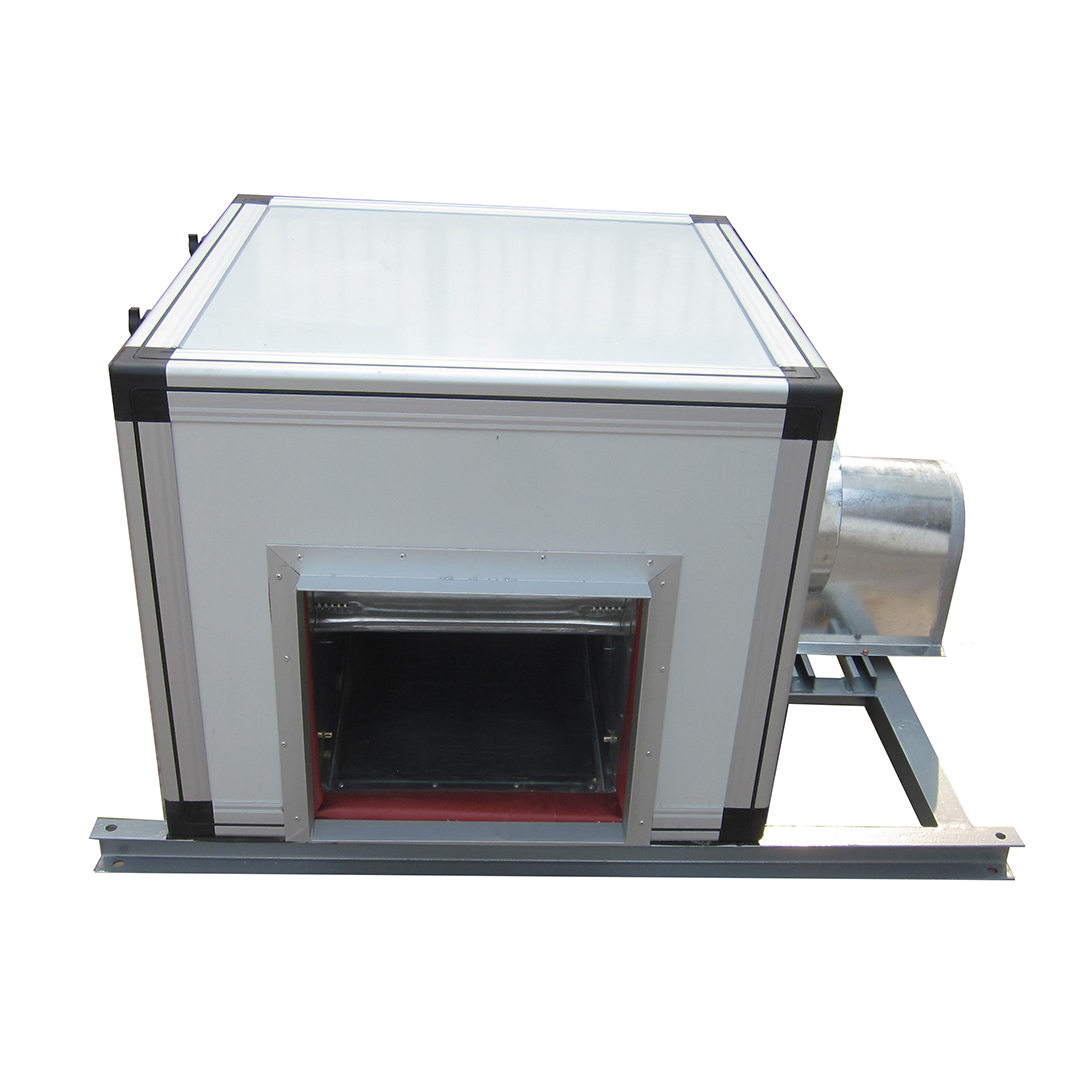

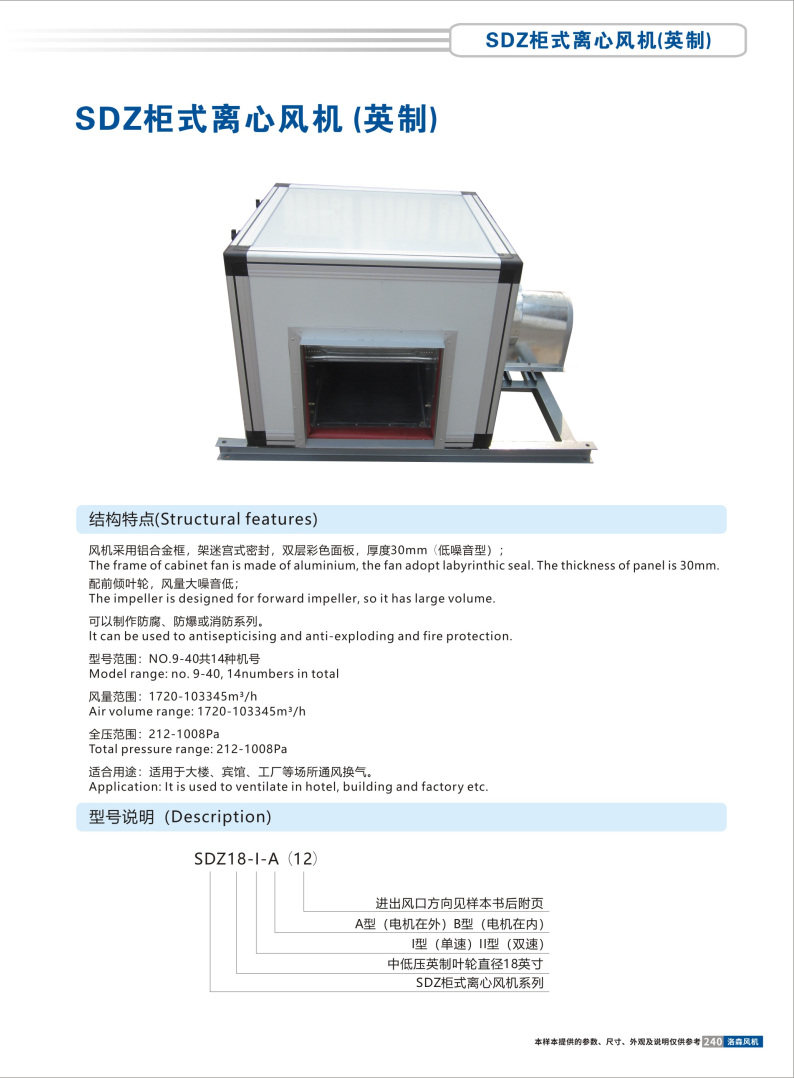

SDZ柜式離心風機(英制)


結構特點:

Structural features:


風機采用鋁合金框,架迷宮式密封,雙層彩色面板,厚度30mm(低噪音型);

The frame of cabinet fan is made of aluminium, the fan adopt labyrinthic seal. The thickness of panel is 30mm.


配前傾葉輪,風量大噪音低;

The impeller is designed for forward impeller, so it has large volume.


可以制作防腐、防爆或消防系列。

lt can be used to antisepticising and anti-exploding and fire protection.


型號范圍:NO.9-40共14種機號

Model range: no. 9-40, 14numbers in total


風量范圍:1720-103345m3/h

Air volume range: 1720-103345m3/h


全壓范圍:212-1008Pa

Total pressure range: 212-1008Pa


適合用途:適用于大樓、賓館、工廠等場所通風換氣。

Application: It is used to ventilate in hotel, building and factory etc.
