詳細介紹
CRS機械配套離心風機
結構特點：
Structural features：
電機直聯，傳動系統簡單，維護方便；
The motor direct connection, system of transmission is simple and easy maintenance;
風機可以由用戶進行90°、180°、0°、270°四種角度調整；
Fans can be carried out by the user 90°,180°,0°,270°four point adjustment.
FCRS、BCRS分別使用于腐蝕及易燃易爆氣體環境。
FCRS and BCRS could be used in flammable and explosive gases.

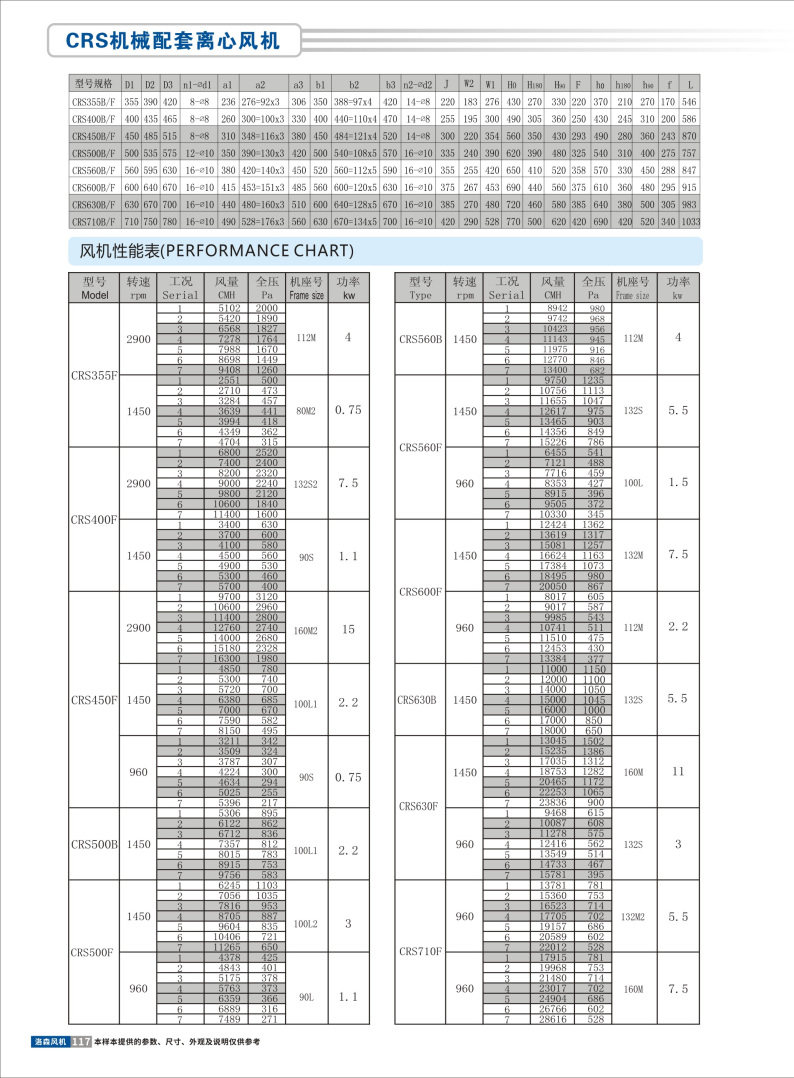

機號范圍：NO.355-710共11種機號
Model range: no. 355-710, 11numbers in total.
風量范圍：2551-28616m3/h
Air volume range: 2551-28616m3/h
全壓范圍：217-3120Pa
Total pressure range: 217-3120Pa
適合用途：廣泛應用于生產線、大中型工廠和民用建筑、大型廣場、發電廠等通風換氣系統配套使用。
Application: It is widely used in production lines, large and medium-sized factories, civil buildings, large squares, power plants and other ventilation systems.
使用環境：氣體介質中不含腐蝕及易燃易爆氣體，介質中粉塵及硬顆粒雜質含量不超過200mg/m3；長期運行介質溫度不超過80℃。
Use environment: the gas medium does not contain corrosive, flammable and explosive gases, and the content of dust and hard particle impurities in the medium does not exceed 200mg / m3; The medium temperature of long-term operation shall not exceed 80 ℃.
